$129.00

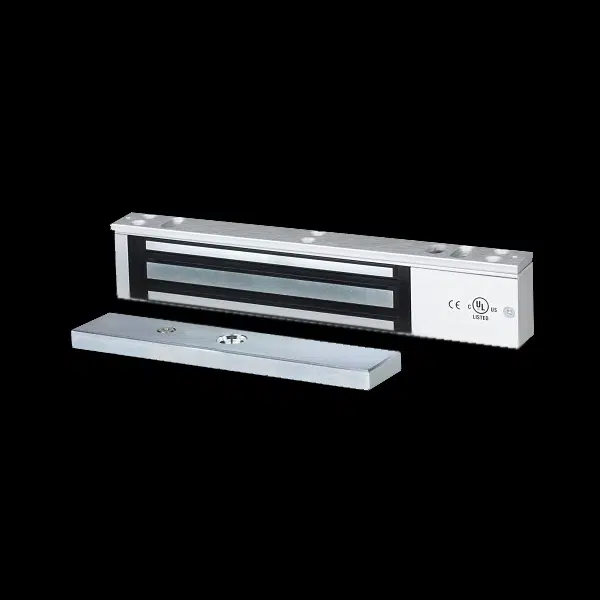

This single door maglock can be used with a variety of doors and in a variety of configurations.

SKU: maglock-600 Category:
View cart

Description



    • Anodized aluminum housing (US 28)



    • 12 or 24 VDC (selectable)



    • No residual magnetism



    • Adjustable mounting bracket



    • MOV surge protection



    • Complete mounting hardware for typical installations

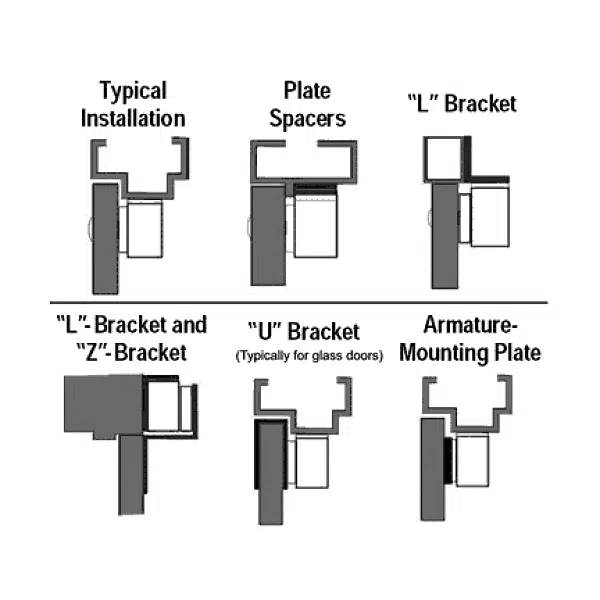

    • “L” bracket and “Z” brackets available for easy mounting



    • Detachable face plate



    • UL and ULC listed



    • CE listed



    • RoHS compliant







Holding Force600-lb (272kg)
Operating Voltage12 or 24 VDC±10%
Current Draw500mA@12VDC, 250mA@24VDC
Operating Temperature14º ~ 131º F (-10º ~ 55º C)
Electromagnet Dimensions9-7/8″x1″x1-5/8″ (250x25x42 mm)
Armature Dimensions7-1/4″x1/2″x1-1/2″ (185x12x38 mm)

Additional information

Weight5 lbs
